LONGHOLE

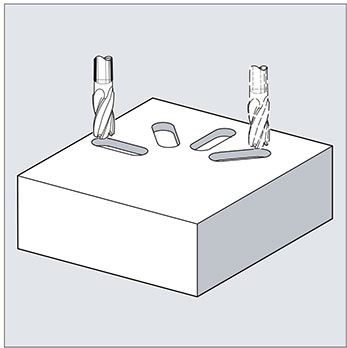

Long holes located on a circle

Width of the long hole is determined by the tool diameter as opposed to SLOT

Parameter

Description

RTP

Return plane (absolute)

RFP

Reference plane (absolute)

SDIS

Safety distance (enter without sign)

slot depth

DPR

slot depth relative to reference plane (enter without sign)

NUM

Num slots

LENG

Slot length (no sign)

CPA

Center point of circle (absolute), first axis of the plane

CPO

Center point of circle (absolute), second axis of the plane

RAD

Radius of the circle (enter without sign)

STA1

Start angle

INDA

Incrementing angle

FFD

Feedrate for depth infeed

FFP1

Feedrate for surface machining

MID

Maximum infeed depth for one infeed (enter without sign)

EXAMPLE
